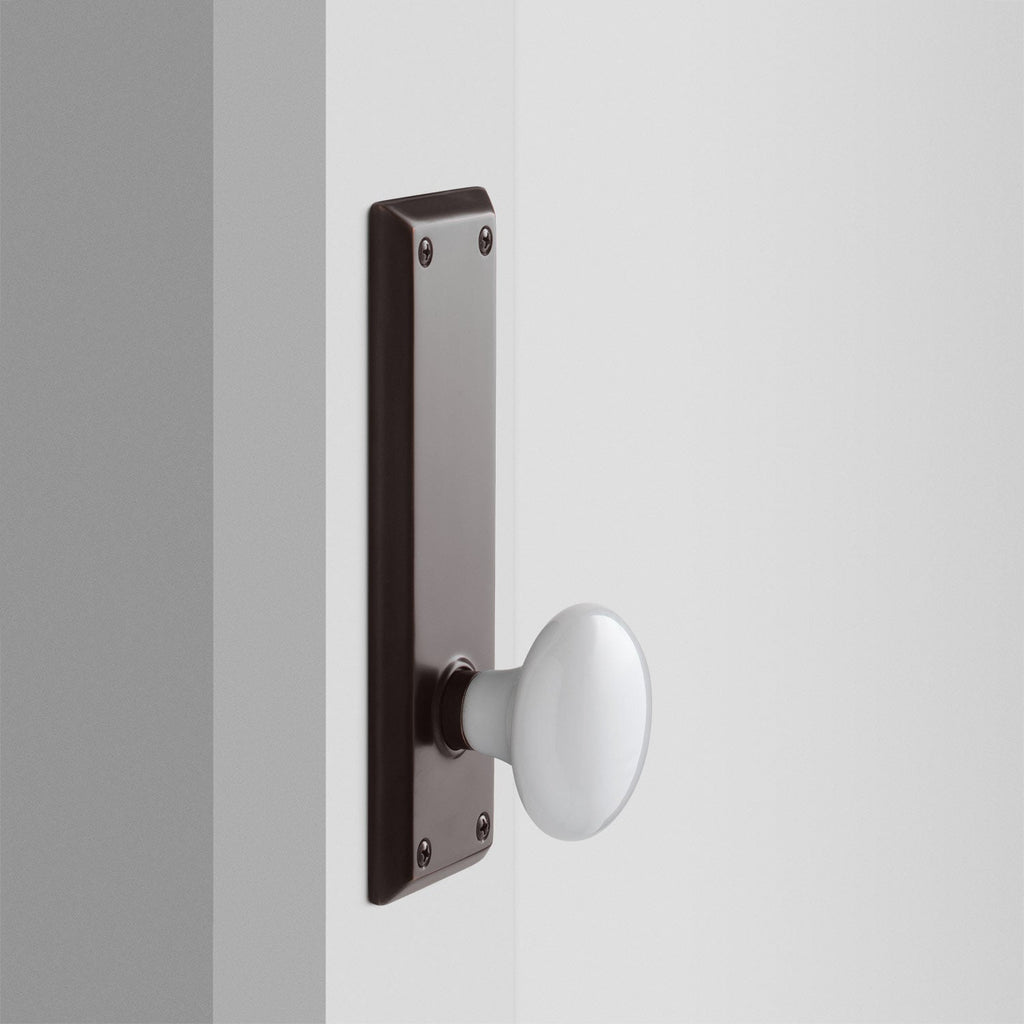

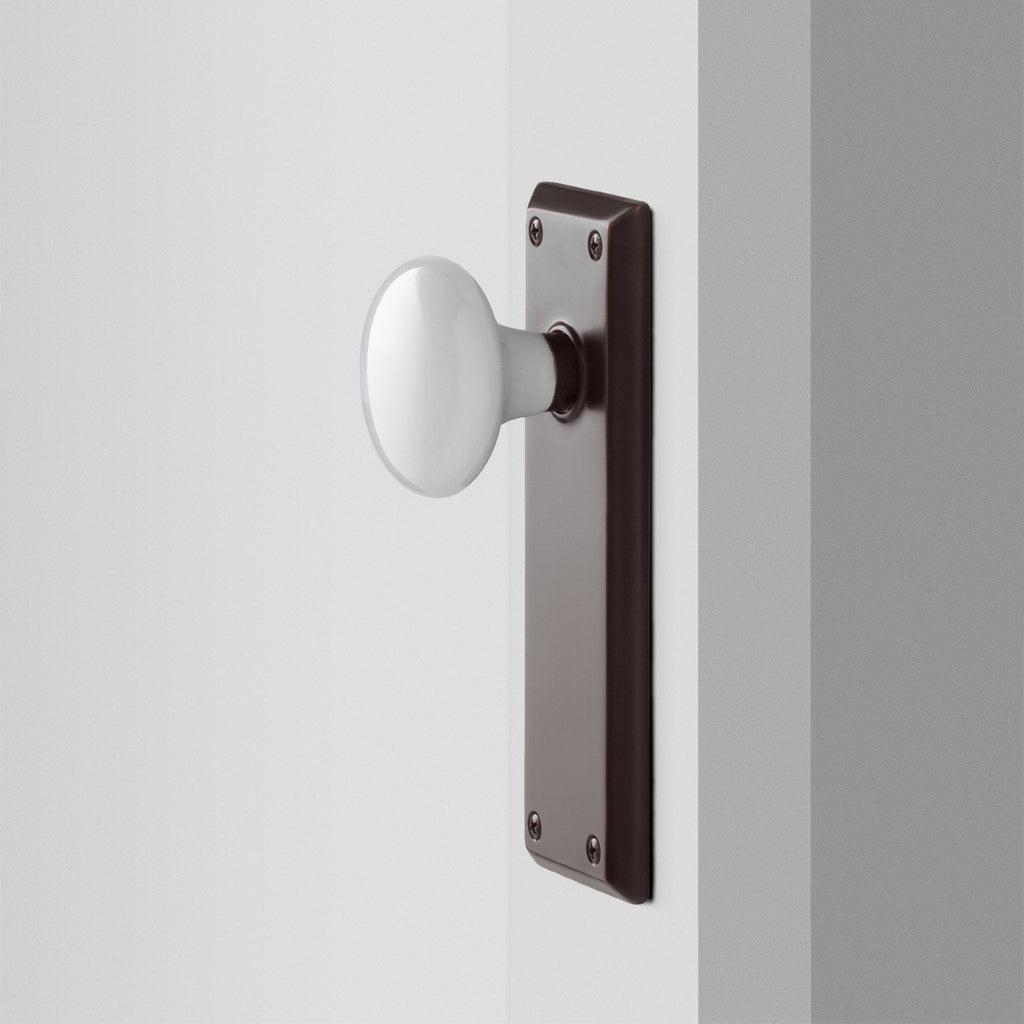

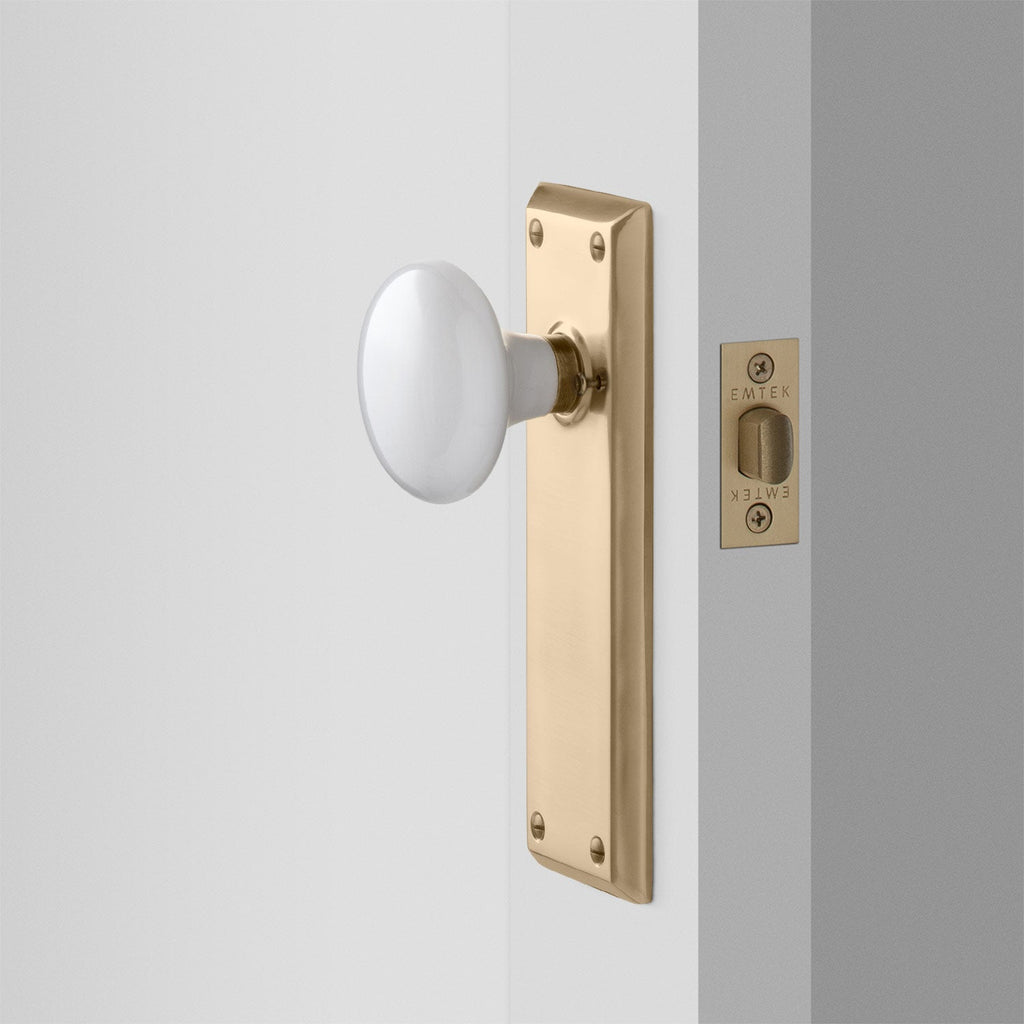

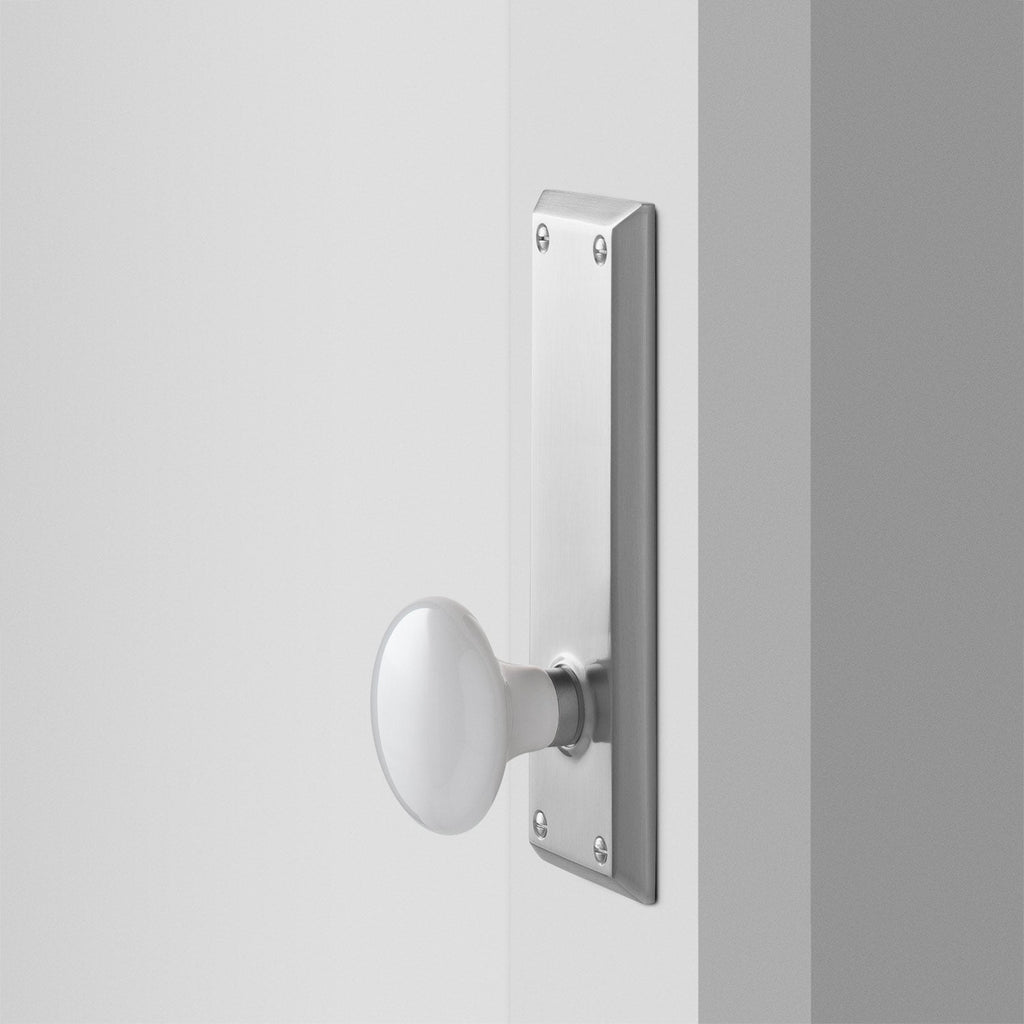

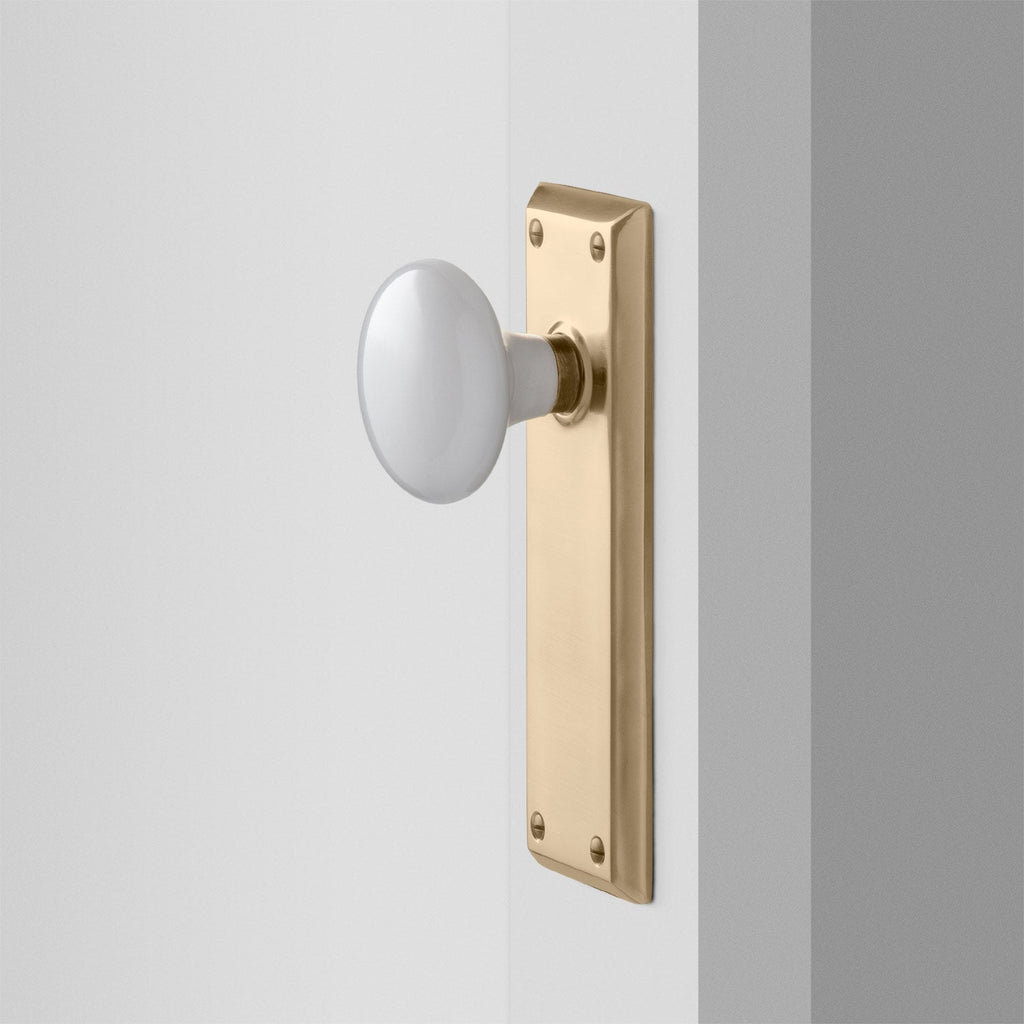

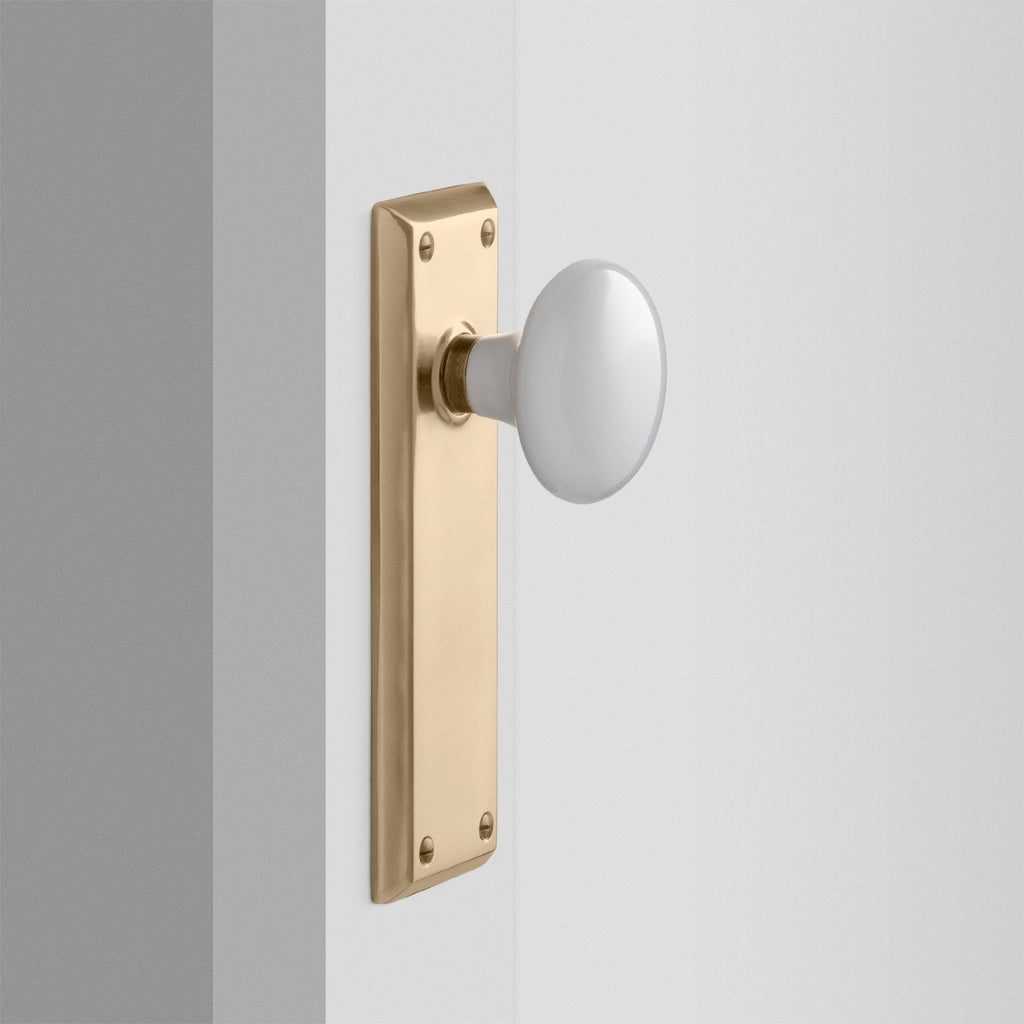

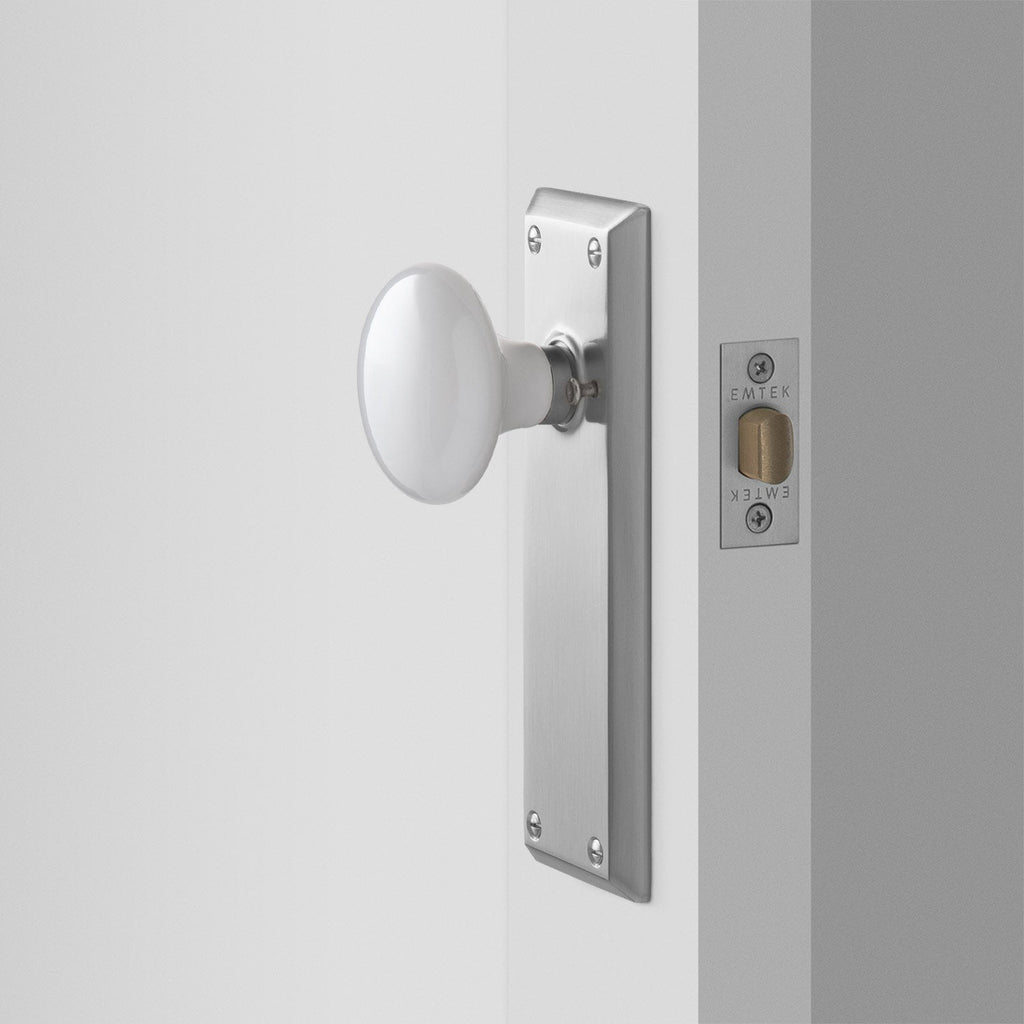

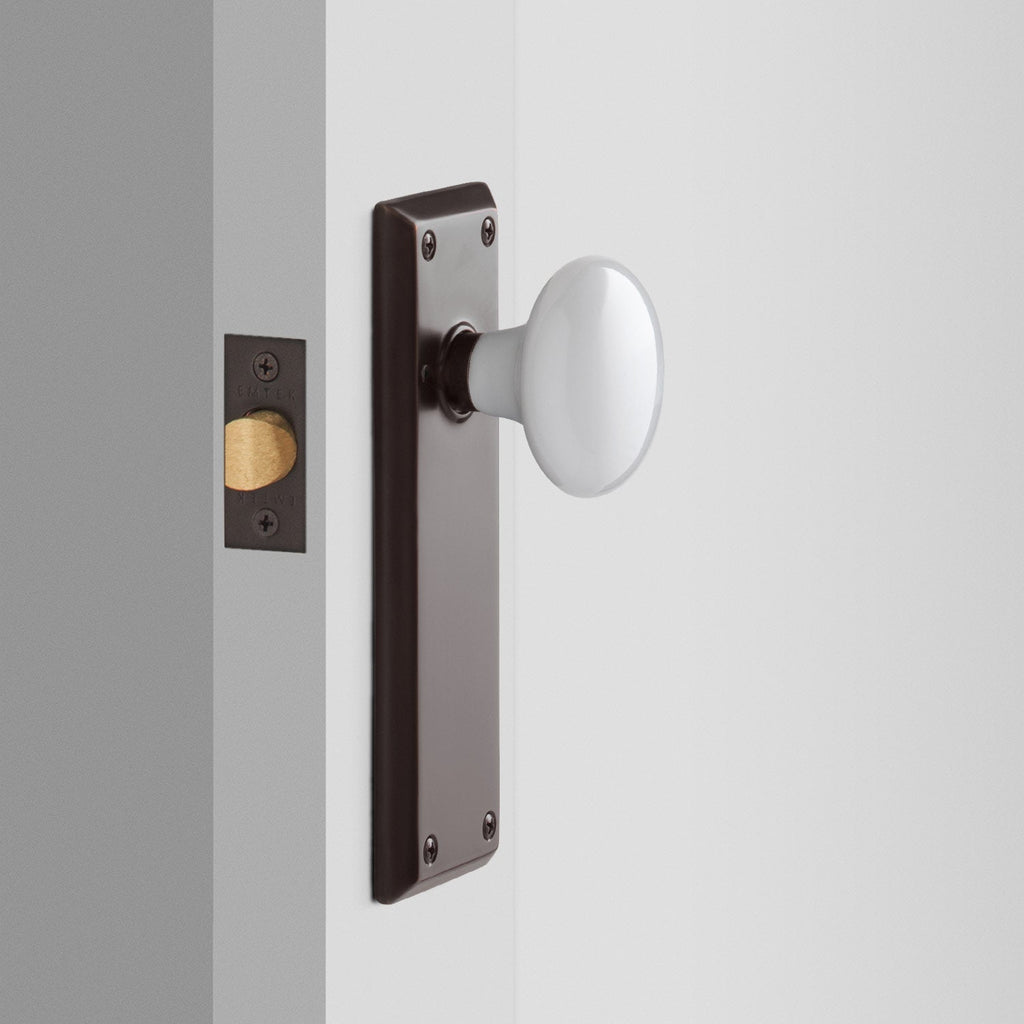

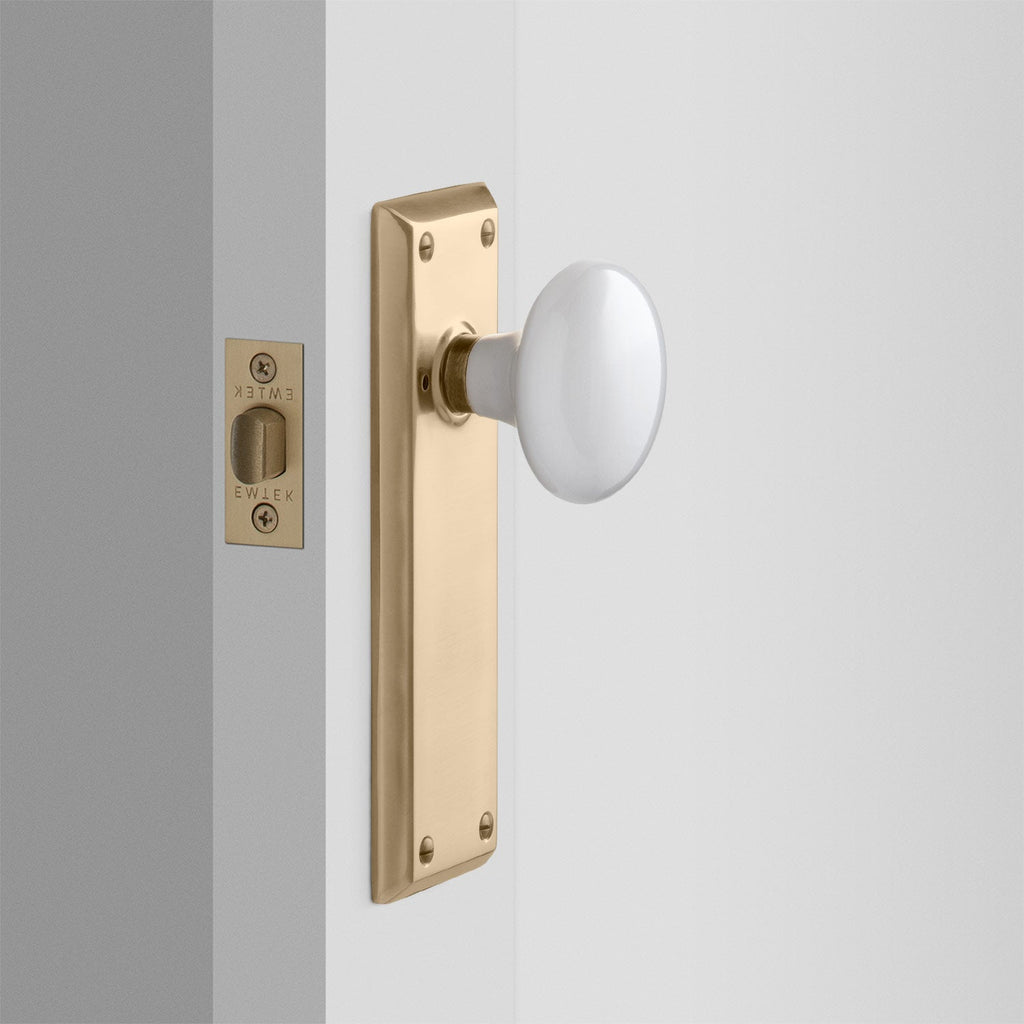

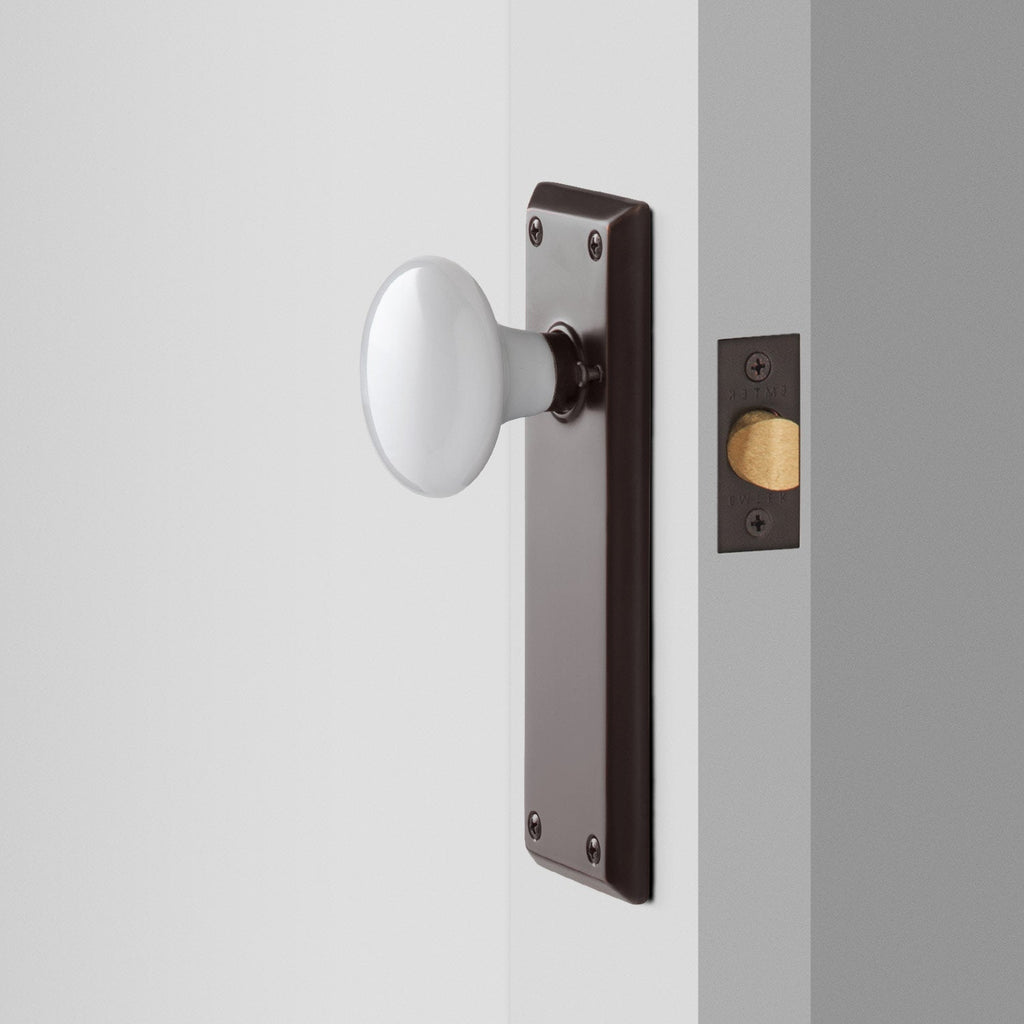

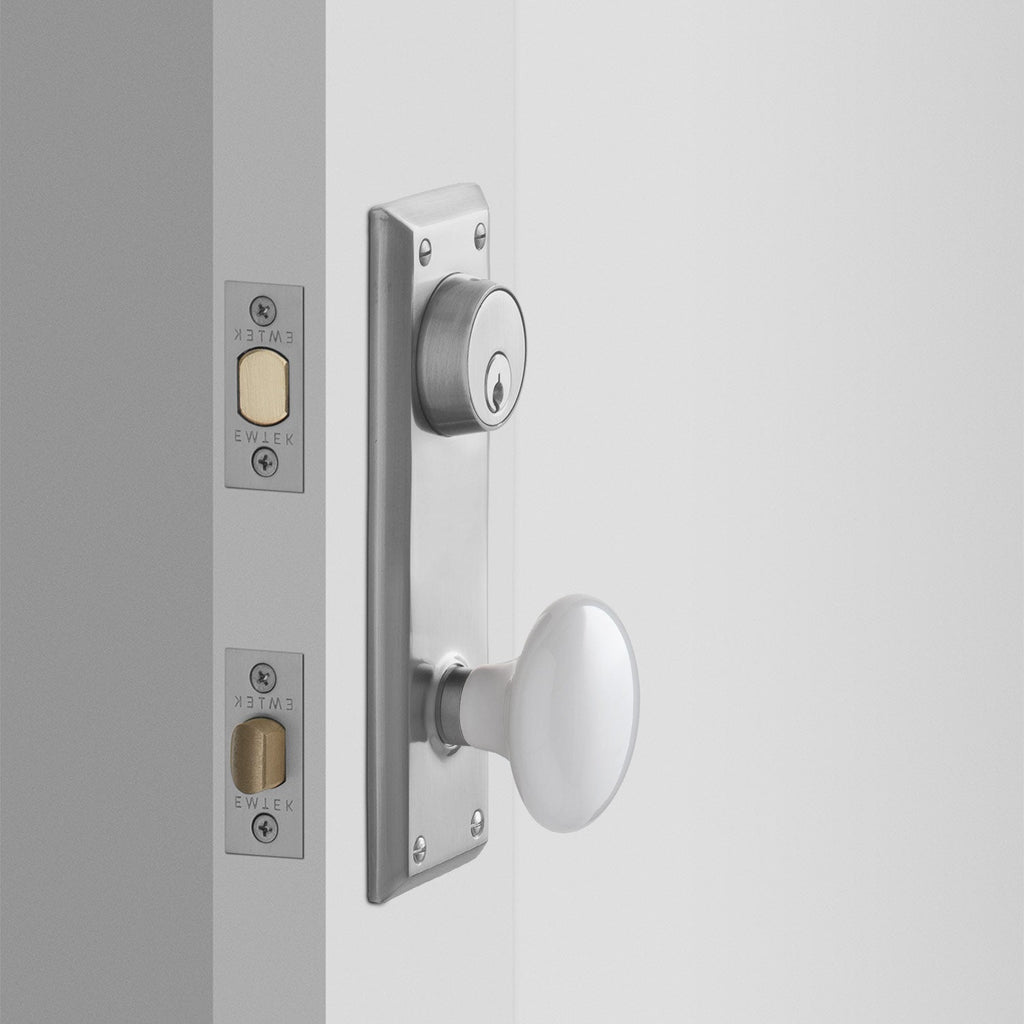

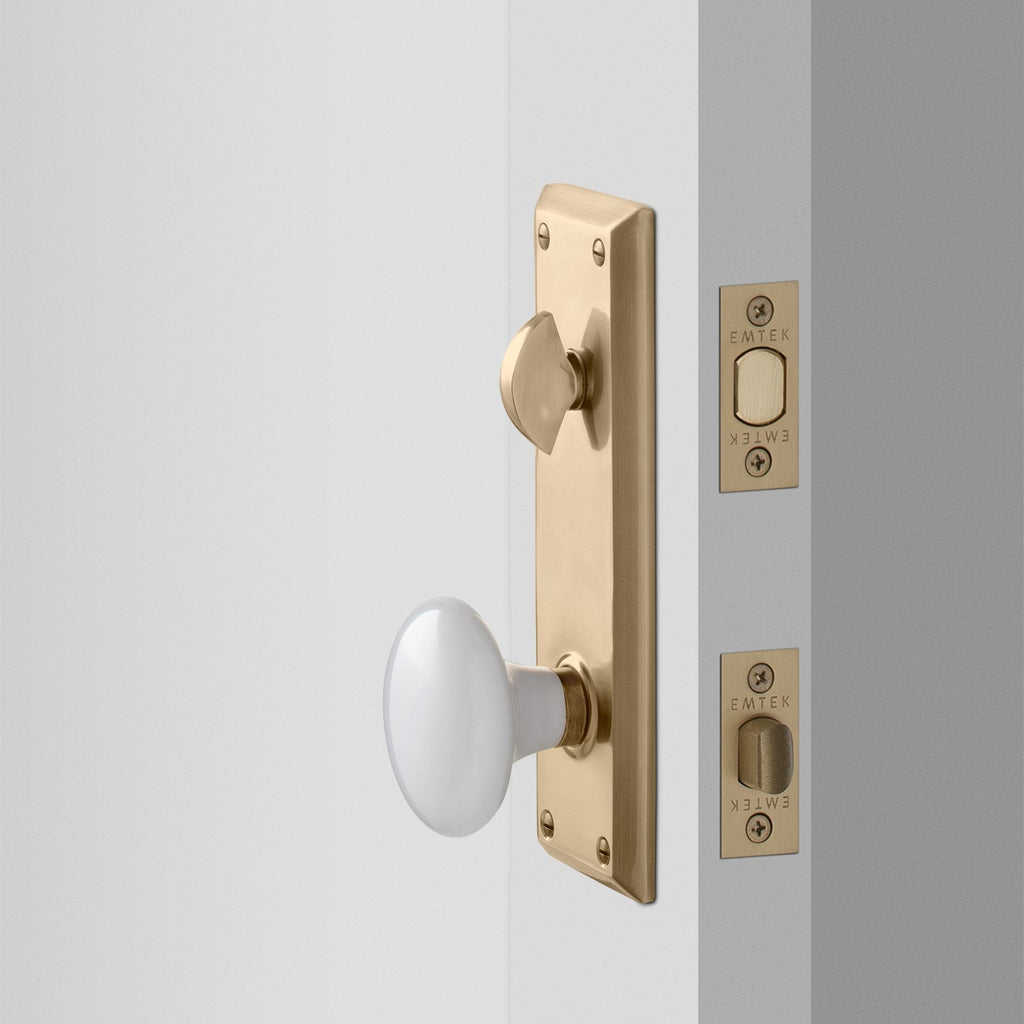

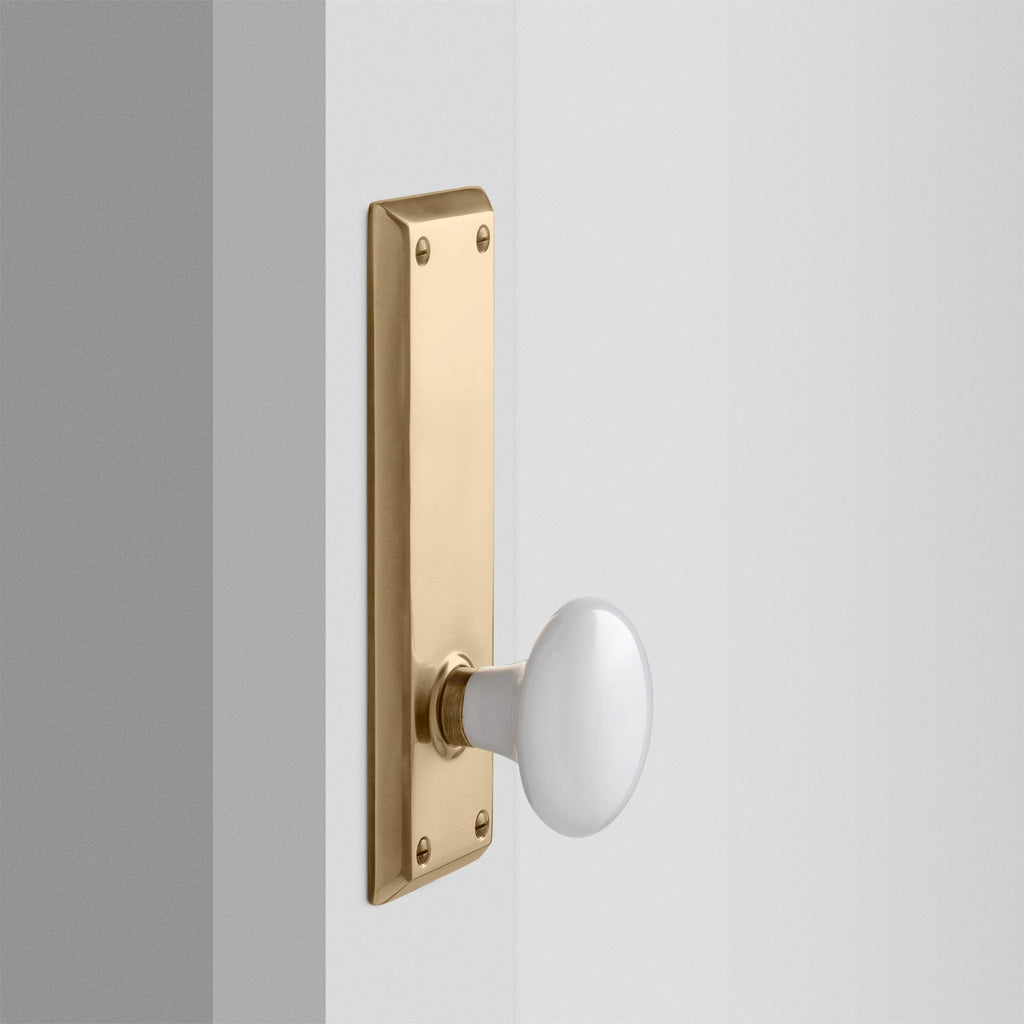

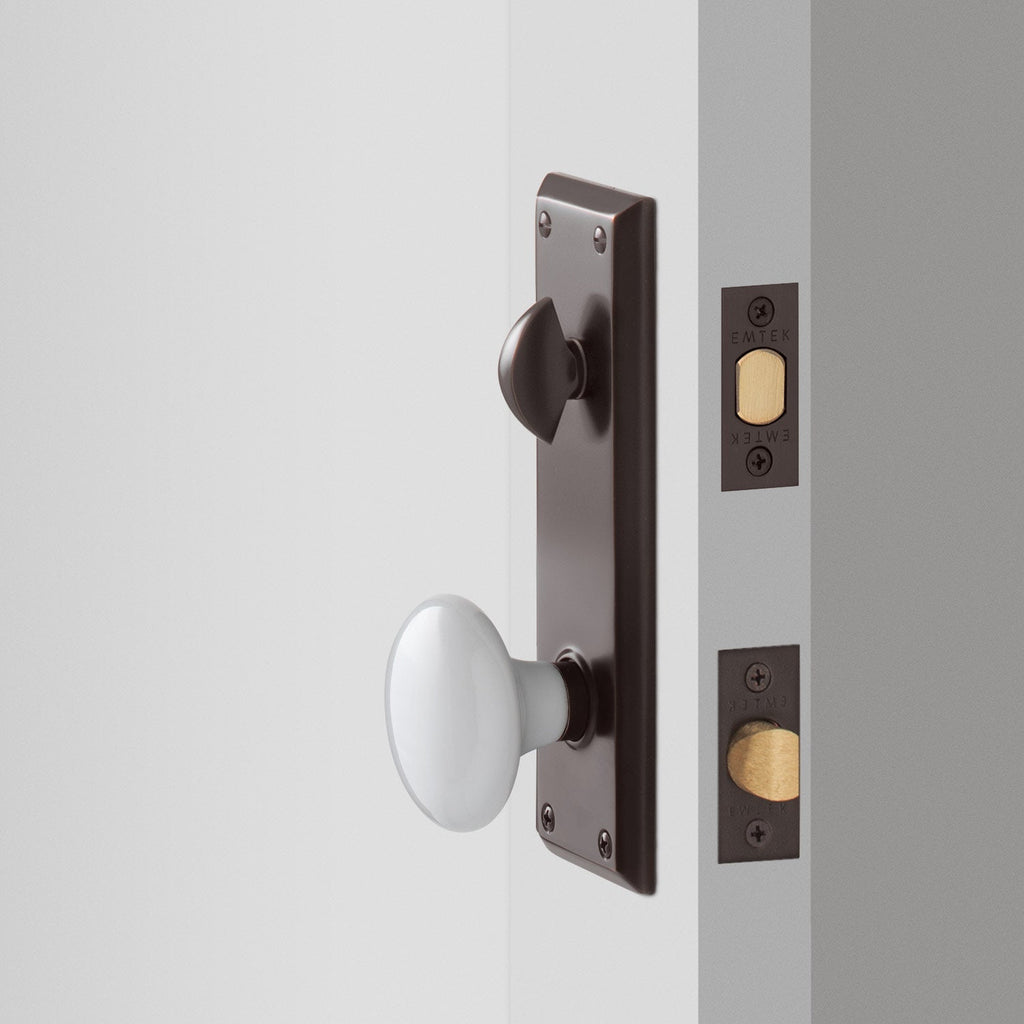

Freeport Large Backplate Doorset with Porcelain Knob
SKU: 614837
Product Information
The Freeport Door Lock Set is designed and crafted to stand the test of time. Each set is made to order from solid brass parts and precision-crafted mechanisms. Made by Emtek, a respected manufacturer with decades of door hardware experience. Assembled in the USA from parts made in China.
Read our door hardware guide to learn how to order for your space.
Consult Spec Sheet for complete product dimensions and installation information. Please contact our Customer Support team with any questions.
Specifications
2.4"
Backplate Dimensions:
2.4" W x 7.125" H
Backplate Thickness:
0.4
Knob Dimensions:
2.375" Dia.
Product Material:
Brass
Product Origin:
China
Requires standard door preparation and installation

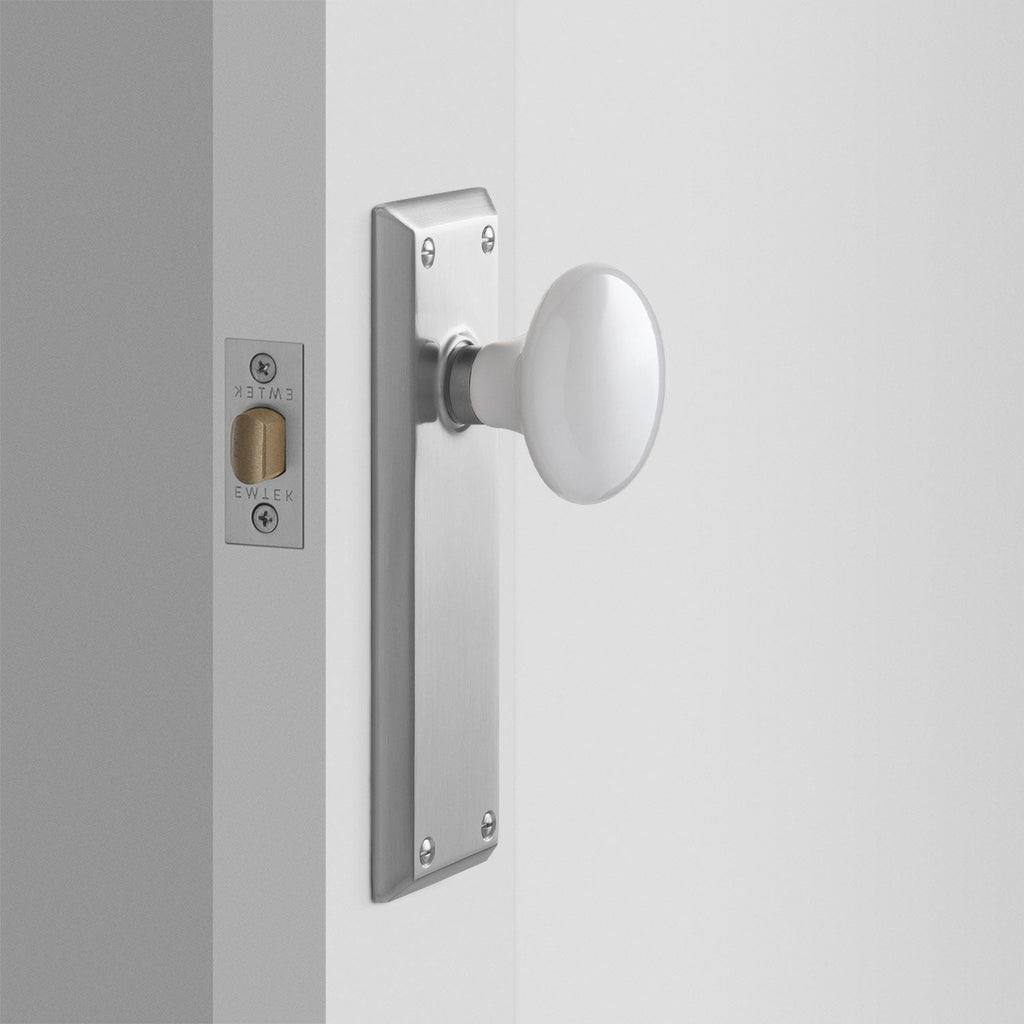

- Passage and Privacy: Single 2-1/8” bore hole and 1” edge bore

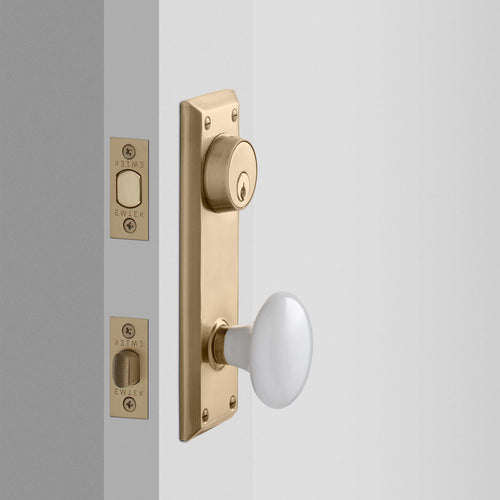

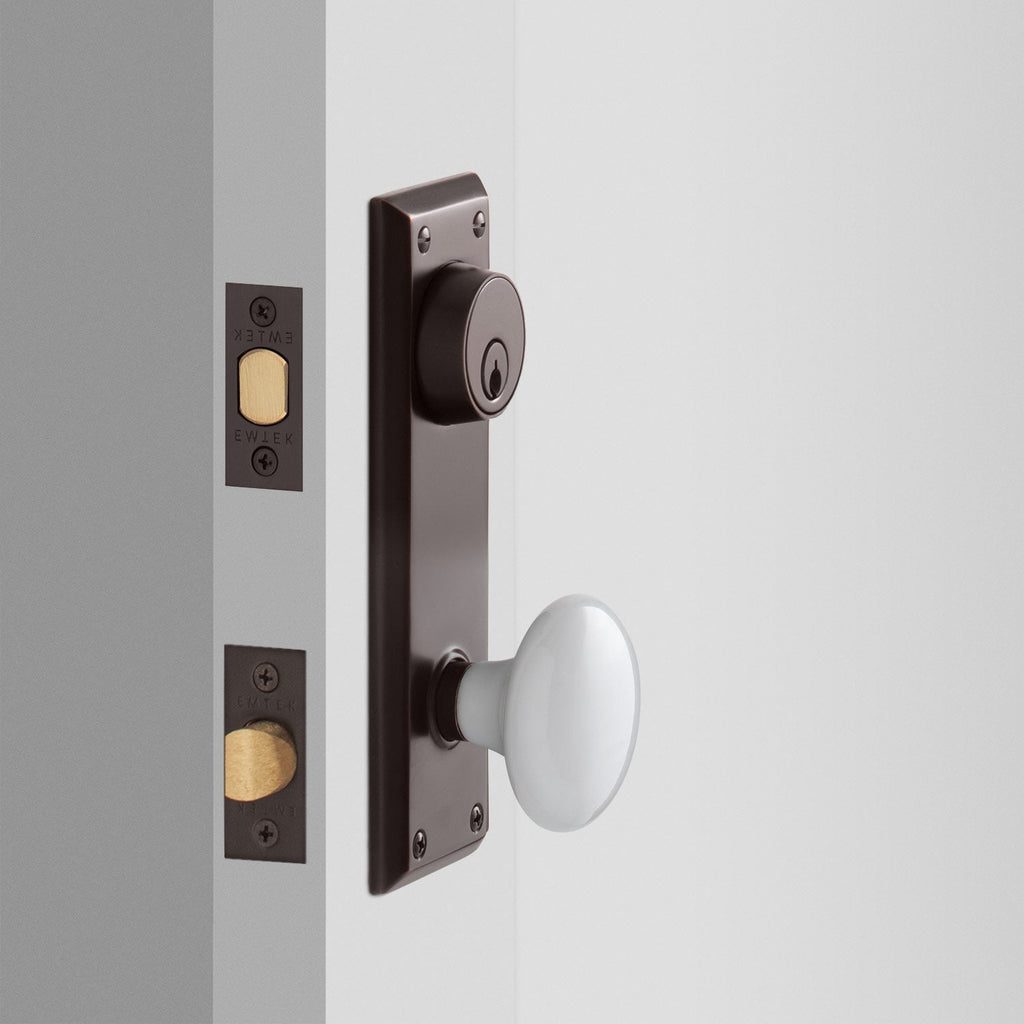

- Keyed: Two 2-1/8” bore holes and 1” edge bores; 3 5/8” center-to-center hole spacing

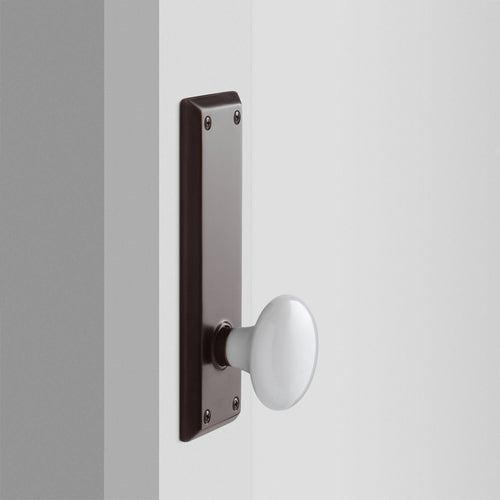

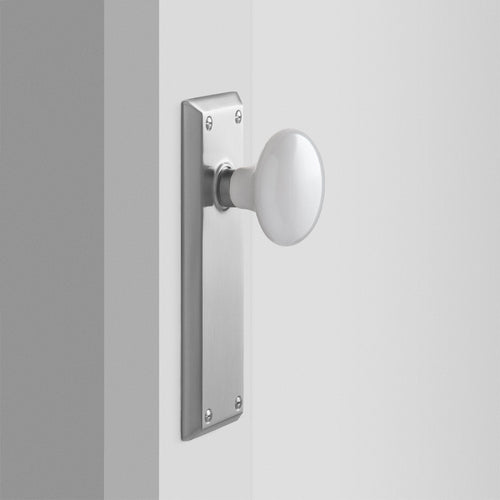

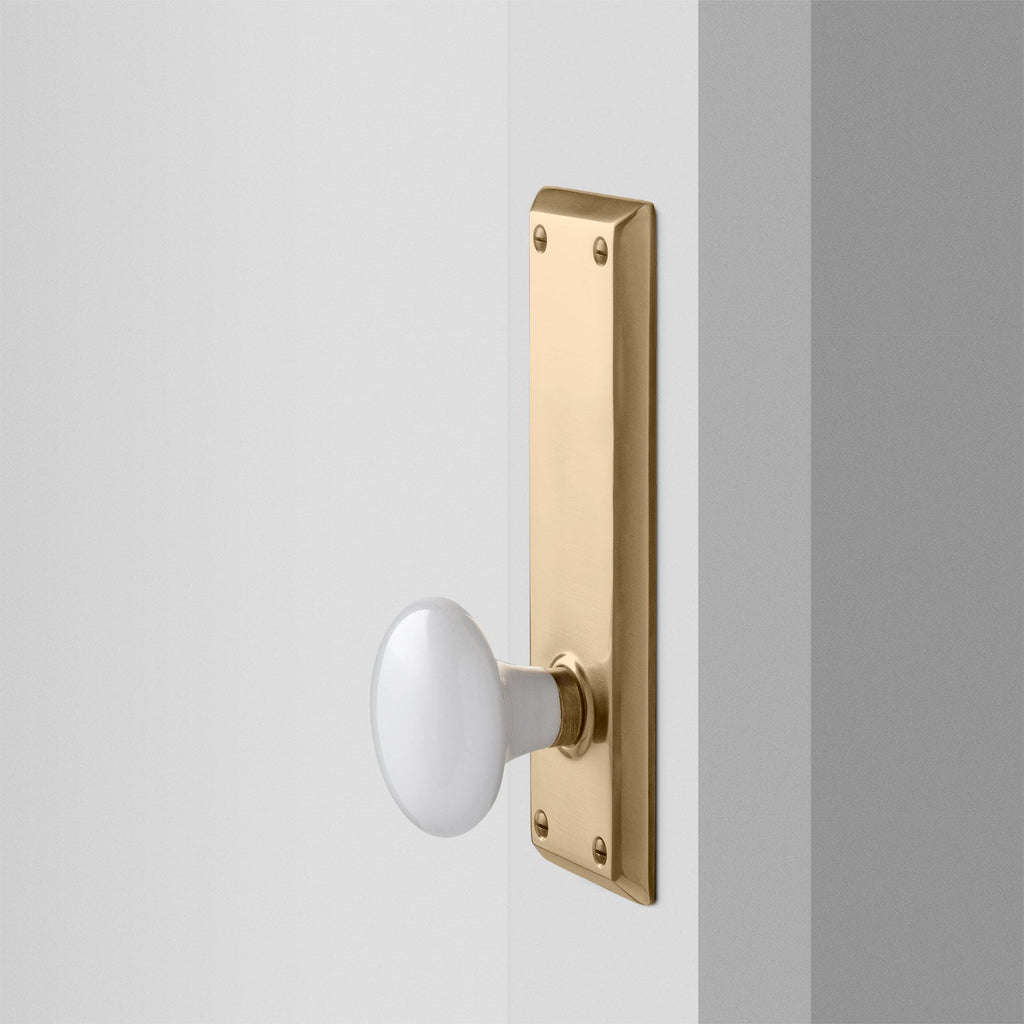

- Dummy: Surface-mounted; No bore hole required
- Keyed function features Schlage C Keyway and includes 2 keys
Set includes:
- Latch plate
- Full-lip strike plate
- Privacy pin (with Privacy function)
- Inside passage half spindle
- 1” wood screws
- 2-1/4” deadbolt mounting screws, extension collar and deadbolt strike plate (with Keyed function)
- Dummy mounting kit (with Dummy function)
Item has Prop65 warning.
WARNING: This product can expose you to Lead, a chemical which is known to the State of California to cause cancer, or birth defects, or other reproductive harm. For more information, go to https://www.P65warnings.ca.gov.
Shipping & Returns
Measurement Info
What is the backset size?
The measurement from the door edge to the center of the bore hole. Most latchbolt backsets are 2-3/8” or 2-3/4”.
What does handing mean?
The direction the door swings. Handing is always determined from the exterior or “outside” of the door (for example: porch to entry, hallway to bedroom, bedroom to closet). When facing the exterior of the door, whichever side the hinges are on will determine the desired handing. If the hinges are on the left, choose Left handing. If the hinges are on the right, choose Right handing.
